SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
MBPO 181160
188 × 110 × 60 mm
Material: Polystyrene
Category: All Products, General Purpose Plastic
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
MBPO 181160

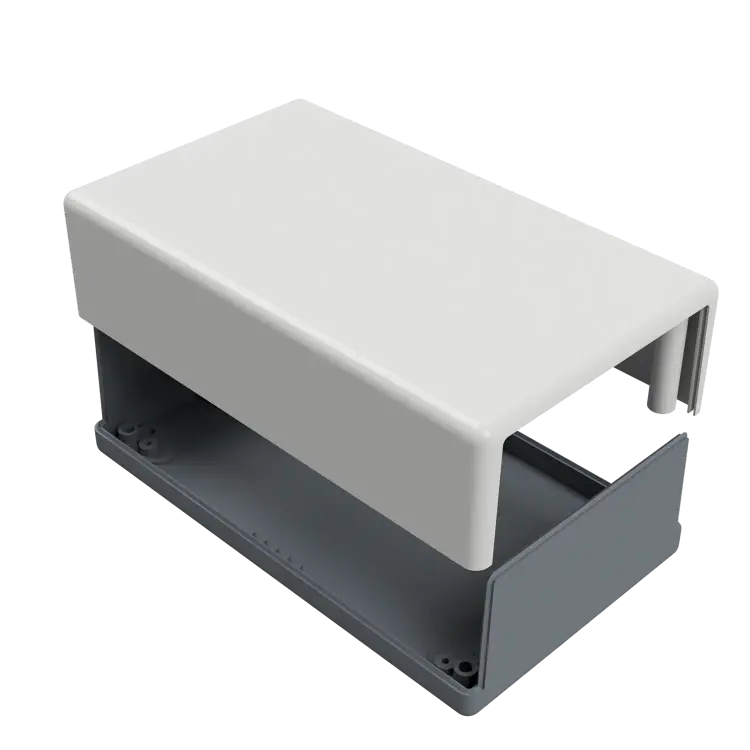

Electronic-Enclosures MBPO in a shapely design are made of impact resistant Polystyrene and are particularly suited to the installation of small controls and desk units.
Excellent stability is achieved with the groove and spring sealing and the base parts that open to the side allowing fast and uncomplicated assembly of construction elements.
The cover is invisibly screwed on from the underside in the standard version. Fixing from the top side of the cover is also possible as an alternative.
- RAL-code cover: 7035
- RAL-code base: 7016
- Material cover: Polystyrene
- Material base: Polystyrene
- Permanent operating temperature max. (?C): 60
- Permanent operating temperature min. (?C): -20
- Suitable for indoor use
- Protection class IP : 20
- Special colours
Technical
| Dimensions | 188 × 110 × 60 mm |
|---|---|
| Colour | Grey |
| Height | 60 |
| Width | 110 |
| Length | 188 |
| IP Rating | IP20 |
| Manufacturer | Multi-Box |
| Material | Polystyrene |
| Flammability | UL94 |
| Shape | Rectangular/Square |
| Mounting | Free Standing |
| Series | MBPO |
