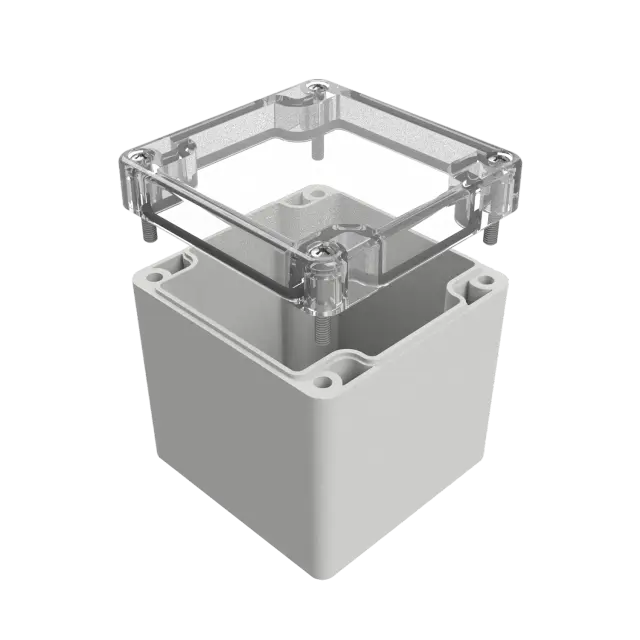

MBT 080809K
82 × 80 × 85 mm
Material: ABS
Category: All Products, General Purpose Plastic
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
MBT 080809K
MBT Enclosures offer excellent properties for the installation of electronic and electrical components as well as complete control systems for indoor applications.
The MBT Enclosures can be mechanically processed in a number of ways providing almost no limits to customised surface design, including silk screen printing and membrane keyboards.
The enclosures are available with a grey or transparent cover (K).
- RAL-code cover: 7035
- RAL-code base: 7035
- Material cover: ABS
- Material base: ABS
- Material sealing: Polyurethane
- Material screws: Stainless Steel V2 A
- Permanent operating temperature max. (?C): 80
- Permanent operating temperature min. (?C): -40
- Suitable for indoor use
- Protection class IP : 65
- Sealing foamed seamless
- Captive cover screws
- Special colours
Technical
| Dimensions | 82 × 80 × 85 mm |
|---|---|
| Colour | Clear, Grey |
| Height | 85 |
| Width | 80 |
| Length | 82 |
| IP Rating | IP65 |
| Manufacturer | Multi-Box |
| Material | ABS |
| Flammability | UL94 |
| Shape | Rectangular/Square |
| Mounting | Free Standing |
| Feature | N/A |
| Series | MBT |
