Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.

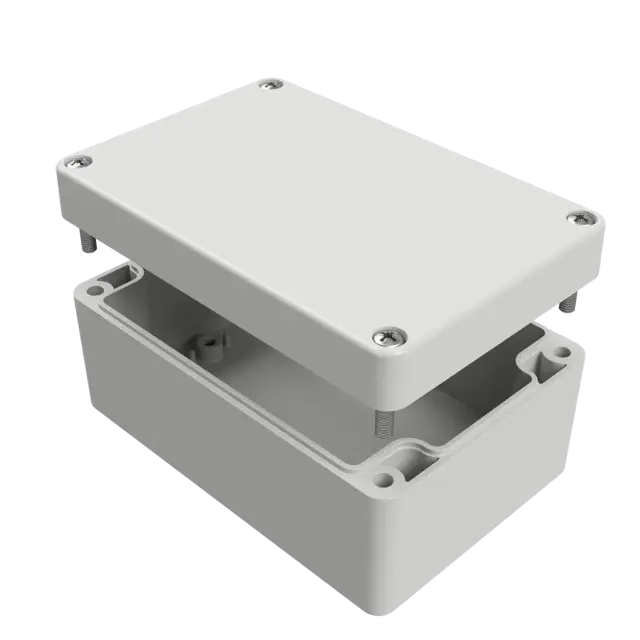

Product Details
It doesn’t always need to be grey!
With our Multi-Colour-Enclosures made of ABS, we offer the possibility of designing the colour of your products and visually upgrading them even for small quantities.
Multi-Colour-Enclosures offer excellent properties for the installation of electronic and electrical components as well as complete control systems for indoor applications.
Our enclosures can be mechanically processed in a number of ways providing almost no limits to customised surface design, including silk screen printing or membrane keyboards.
- Permanent operating temperature max. (?C): 80
- Permanent operating temperature min. (?C): -40
- Suitable for indoor use
- Protection class IP65
- Sealing foamed seamless
- Captive cover screws
- Available in Grey, Red, Yellow, Blue, Black
- See (K) for Grey base with Clear cover
Also available in other sizes:
Technical
| Dimensions | 120 × 80 × 55 mm |
|---|---|
| Colour | Red |
| Height | 55 |
| Width | 80 |
| Length | 120 |
| IP Rating | IP65 |
| Manufacturer | Multi-Box |
| Material | ABS |
| Flammability | UL94 |
| Shape | Rectangular/Square |
| Mounting | Free Standing |
| Feature | N/A |
| Series | MBT |
