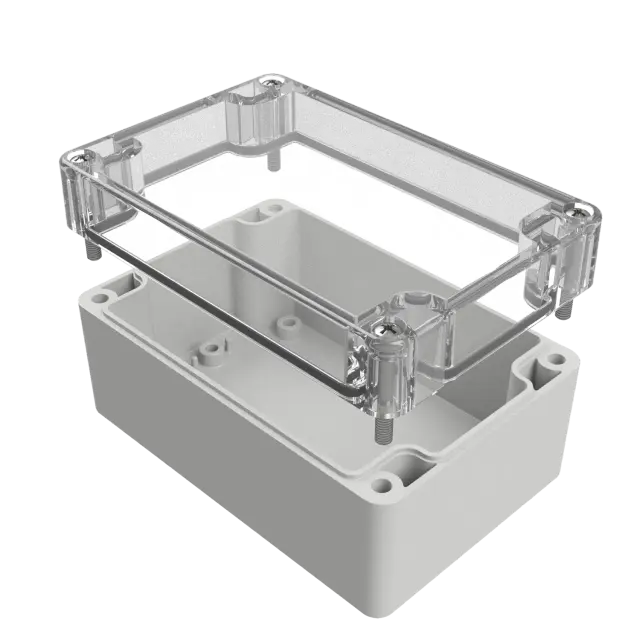

MBT 128060K

120 × 80 × 60 mm

Material: ABS

Category: All Products, General Purpose Plastic

ABS-Enclosures MBT / Clear Cover
Price on Application

Low volume indicative cost. Enquire for volume pricing.

Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

MBT 128060K

MBT Enclosures offer excellent properties for the installation of electronic and electrical components as well as complete control systems for indoor applications.

The MBT Enclosures can be mechanically processed in a number of ways providing almost no limits to customised surface design, including silk screen printing and membrane keyboards.

The enclosures are available with a grey or transparent cover (K).

  • RAL-code cover: 7035
  • RAL-code base: 7035
  • Material cover: ABS
  • Material base: ABS
  • Material sealing: Polyurethane
  • Material screws: Stainless Steel V2 A
  • Permanent operating temperature max. (?C): 80
  • Permanent operating temperature min. (?C): -40
  • Suitable for indoor use
  • Protection class IP : 65
  • Sealing foamed seamless
  • Captive cover screws
  • Special colours



Technical

Dimensions 120 × 80 × 60 mm
Colour

Clear, Grey

Height

60

Width

80

Length

120

IP Rating

IP65

Manufacturer

Multi-Box

Material

ABS

Flammability

UL94

Shape

Rectangular/Square

Mounting

Free Standing

Feature

N/A

Series

MBT
