RCBS1901213LG1
330 × 533 × 362 mm
Material: Steel
Category: All Products, Cabinets & Racks

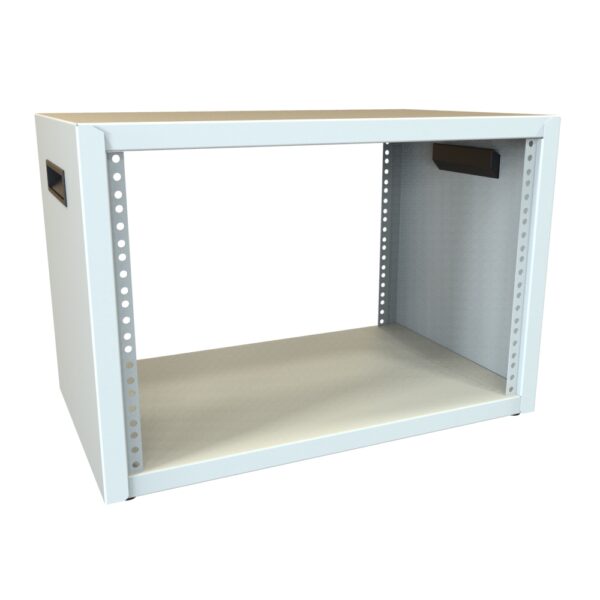

7U 19" Table Top Rack - Light Grey
£150.93
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
The RCBS has been the industry standard for desktop audio and test/measurement applications for over four decades. Fixed-depth rack rails recessed 0.375" at the front and rear are included in the completely welded frame.
Features
- Constructed in 16-gauge welded steel.
- The fixed-depth mounting rails have EIA spaced classic round holes for clip-nut use.
- Includes a starter pack
CLPKIT1032-10 clip nuts and rack screws.
- Includes a starter pack
- Includes side lifting handles and scuff-resistant raised rubber feet for easier repositioning.
- Finished in textured RAL9005 black or RAL 7035 light gray powder paint.
- 600 lbs (272 kg) load rating.
- TAA-compliant for GSA Schedule purchases.
- RoHS Compliant.
- Manufactured in North America within an ISO 9001:2015 certified facility.
Technical
| Dimensions | 330 × 533 × 362 mm |
|---|---|
| Colour | Grey |
| Height | 362 |
| Width | 533 |
| Length | 330 |
| IP Rating | N/A |
| Manufacturer | Hammond |
| Material | Steel |
| Flammability | N/A |
| Shape | Rectangular/Square |
| Mounting | Rack Mount |
| Feature | N/A |
| Series | RCBS |
