RL6115-F

80 × 60 × 40 mm

Material: ABS

Category: All Products, General Purpose Plastic

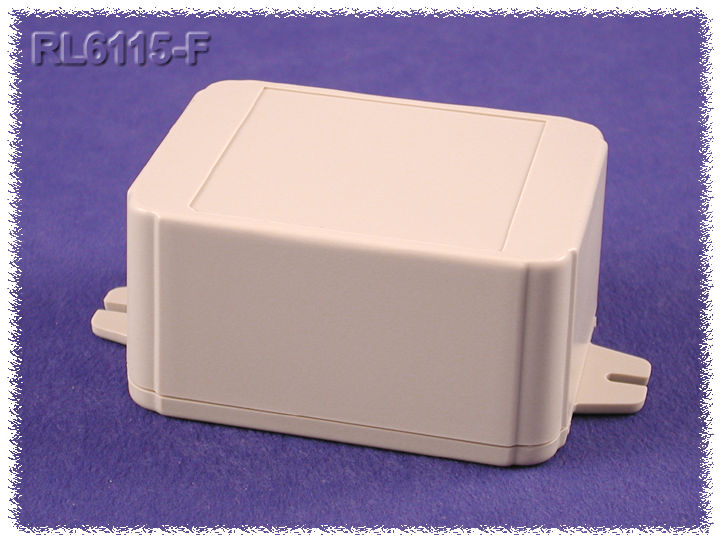

Ritec RL Series Project Box - Flanged Lid
£2.19

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details



Key Features:

  • Designed to house P.C. boards for hand-held use or Wall Mount.
  • moulded in light grey or black general purpose ABS plastic with a light texture.
  • Two part construction. Both halves include smooth recessed area for membrane, label or silkscreen (see chart below for recess size).
  • P.C. board standoffs are moulded into both halves of the enclosure (see photo tables for details).
  • Designed to meet IP54.
  • All sizes also available in a flanged lid version.
  • Includes four M3 x 25mm self-tapping lid screws.
  • Includes four M2.6 x 6mm self-tapping P.C. board screws.
  • For replacement lid screws (quantity 50) order part number?SC519-50.

Technical

Dimensions 80 × 60 × 40 mm
Colour

Grey

Height

40

Width

60

Length

80

IP Rating

IP54

Manufacturer

Hammond

Material

ABS

Flammability

UL94-HB

Shape

Rectangular/Square

Mounting

Wall Mount

Feature

Recessed Lid

Series

RL

Downloads

RL6115-F

263.07 KB
