RL6225BK
125 × 80 × 50 mm
Material: ABS
Category: All Products, General Purpose Plastic

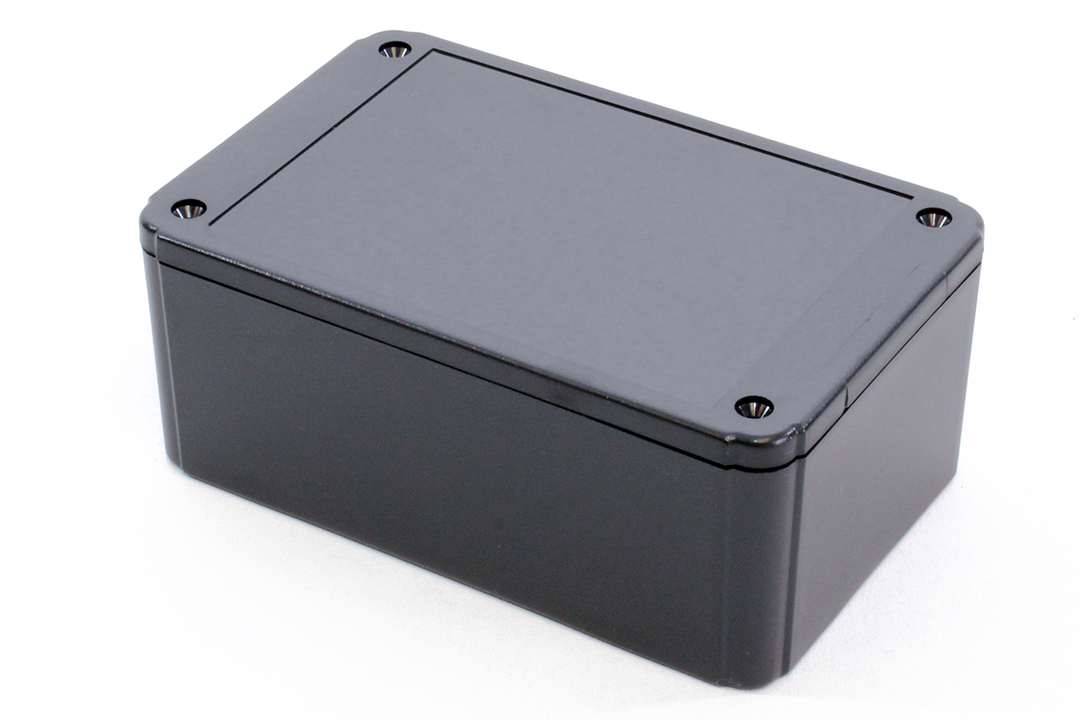

Ritec RL Series Project Box - Shallow Lid
£2.54
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
Key Features:
- Designed to house P.C. boards for hand-held use or Wall Mount.
- moulded in light grey or black general purpose ABS plastic with a light texture.
- Two part construction. Both halves include smooth recessed area for membrane, label or silkscreen (see chart below for recess size).
- P.C. board standoffs are moulded into both halves of the enclosure (see photo tables for details).
- Designed to meet IP54.
- All sizes also available in a flanged lid version.
- Includes four M3 x 25mm self-tapping lid screws.
- Includes four M2.6 x 6mm self-tapping P.C. board screws.
- For replacement lid screws (quantity 50) order part number?SC519-50.
Available in black or grey, and with or without mounting flanges. Includes lid and PC board screws.
Technical
| Dimensions | 125 × 80 × 50 mm |
|---|---|
| Colour | Black |
| Height | 50 |
| Width | 80 |
| Length | 125 |
| IP Rating | IP54 |
| Manufacturer | Hammond |
| Material | ABS |
| Flammability | UL94-HB |
| Shape | Rectangular/Square |
| Mounting | Wall Mount |
| Feature | Recessed Lid |
| Series | RL |
