RM2015S
221.9 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST

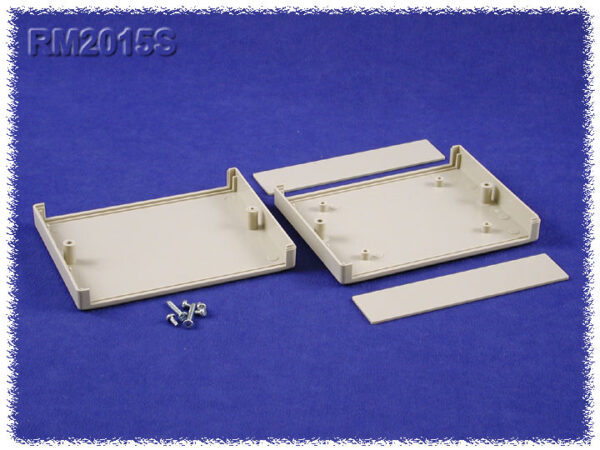

RM2015S
130 × 100 × 30 mm
Material: ABS
Category: All Products, General Purpose Plastic
Ritec RM Series Instrument Case
£2.94
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
Features
- Strong construction yet light weight using all aluminium components
- Suitable for desk top or rack mountable applications.
- Knockdown design ships un-assembled for easy handling and shipping protection.
- Strong construction using:
- extruded aluminium side panels 0.125" (3.2 mm) thick
- extruded aluminium front & rear panels 0.125" (3.2mm) thick
- flat aluminium top and bottom panels 0.064" (1.6 mm) thick
- Can be used with or without rack mounting brackets (one pair included)
- Front & rear panel are interchangeable.
- Enclosure is finished in rugged, textured, black powder coat.
- Includes top, bottom, sides, self adhesive rubber feet, rack mount brackets and all assembly hardware
- Pull handles & adjustable rear bracket rack mount kit (for deeper models) are not included with unit (see tables & accessories below).
- RoHS Compliant.
- Manufactured in North America.
Looking for a Rack Mount Storage Drawer? Check out the
Technical
| Dimensions | 130 × 100 × 30 mm |
|---|---|
| Colour | Grey |
| Height | 30 |
| Width | 100 |
| Length | 130 |
| IP Rating | IP43 |
| Manufacturer | Hammond |
| Material | ABS |
| Flammability | UL94-HB |
| Shape | Rectangular/Square |
| Mounting | Free Standing |
| Series | RM |
