RMCS9018BK1

216 × 203 × 21 mm

Material: Aluminium

Category: All Products, Diecast & Metal

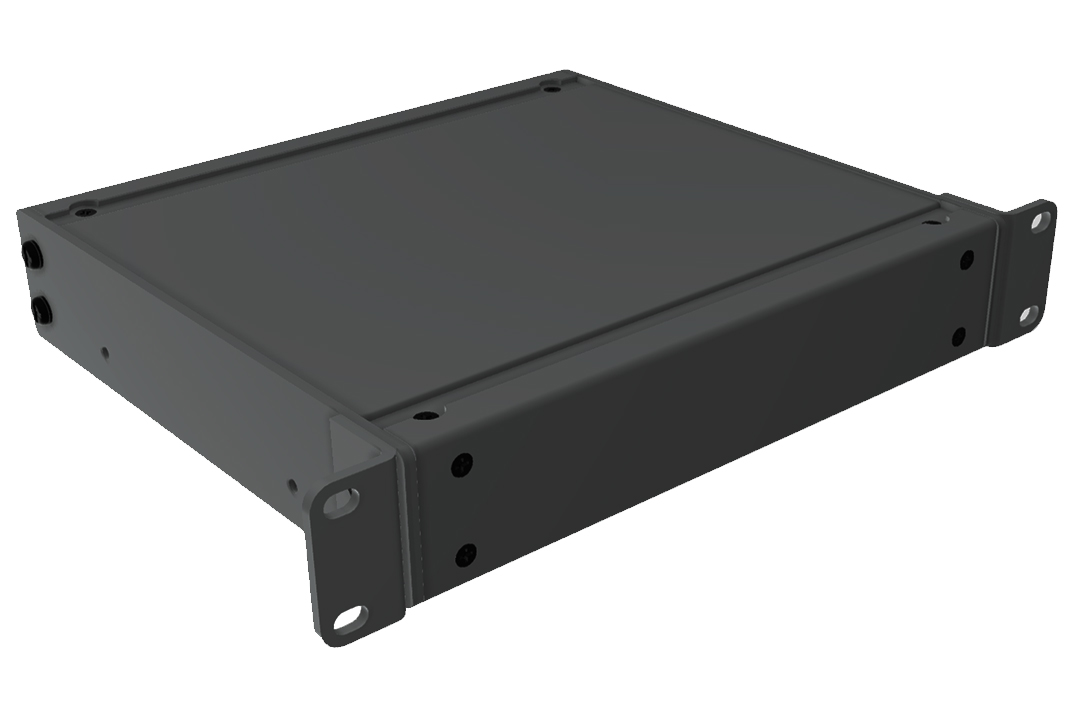

Rack Mount/Desk Top Aluminium Enclosure
£70.06

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

Features

    • Uses all machine screw & PEM nut construction, perfect for applications where repetitive assembly and disassembly are required.
    • Light weight design – all aluminium, type 5052 H32 for easy modification. Example: the 19" rack mountable enclosure (RMCS190313BK1) shown in the left photo above – weighs only 5 pounds (2.3 Kg).
    • Strong design construction using:
      • 0.125" (3.2 mm) thick – side panels & rack mount brackets
      • 0.064" (1.6 mm) thick – front & rear panels
      • 0.062" (1.6 mm) thick – top and bottom panels
    • Can be used with or without rack mounting "ears" or brackets (included).
    • Enclosure is finished in rugged, satin texture, black powder paint
    • Includes top, bottom, side panels, front & rear panels, rubber self adhesive feet, rack mount brackets and all hardware
    • Pull handle accessory kit available
    • Easy access to inside, only 4 screws need to be removed from any of the 6 panels for internal access.
    • Internal aluminium chassis panel is optional (see below).
    • Knockdown design ships unassembled for easy handling and shipping protection.
    • Note: Panels are not grounded to frame due to powder coat finish.  Grounding method to be determined by user.
    • RoHS Compliant.
    • Manufactured in North America.

    Replacement Hardware kit: RMCHDWKIT includes:

    • #10?32 X 5/8" Pan head black, qty 8
    • #6?32 X 3/8" Flat head black, qty 16
    • 20.5 X 20.5 X 7.6 Rubber Bumpon, qty 4

    Technical

    Dimensions 216 × 203 × 21 mm
    Colour

    Black

    Height

    21

    Width

    203

    Length

    216

    IP Rating

    N/A

    Manufacturer

    Hammond

    Material

    Aluminium

    Flammability

    N/A

    Shape

    Rectangular/Square

    Mounting

    Rack Mount

    Feature

    N/A

    Series

    RMC

    Downloads

    RMCS9018BK1

    328.47 KB
