RP1095

105 × 75 × 55 mm

Material: ABS

Category: All Products, General Purpose Plastic

Ritec RP Series ABS Project Enclosure
£5.79

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

Key Features

  • Ideally suited for mounting printed circuit boards or components.
  • Choice of two Materials:
    • General purpose ABS with a flame rating of UL94-HB
    • Polycarbonate with a flame rating of UL94-V2
  • Gasketed lid with two piece "tongue & groove" construction provides protection against access of oil, dust, and water.
  • Rubber gasket is included and must be field installed.
  • Lid includes smooth recessed area for membrane, label or silkscreen.
  • Designed to meet IP 65.
  • Lid is secured with self captivating M3.5 stainless steel machine screws (included), threaded into corrosion resistant bushings (for repetitive assembly & disassembly).
  • Lid screws are self captivating (lid holes are threaded with the first installation of lid screws).
  • Internal features are maximized for mounting options:
    • Internal DIN rail mounting tabs
    • PC board mounting posts
    • Options vary with size, please refer to drawings by clicking on the part numbers below.
  • Extra self-tapping M3.5-0.6 x 10mm lid screws: SC619-50
  • Extra self-tapping M3 x 6mm PC Board screws: SC622-50

nOpaque Lid (ABS version shown)

nClear Lid (polycarbonate version shown)

nShown with integral bottom flange.

nSome models supplied with deep lids.

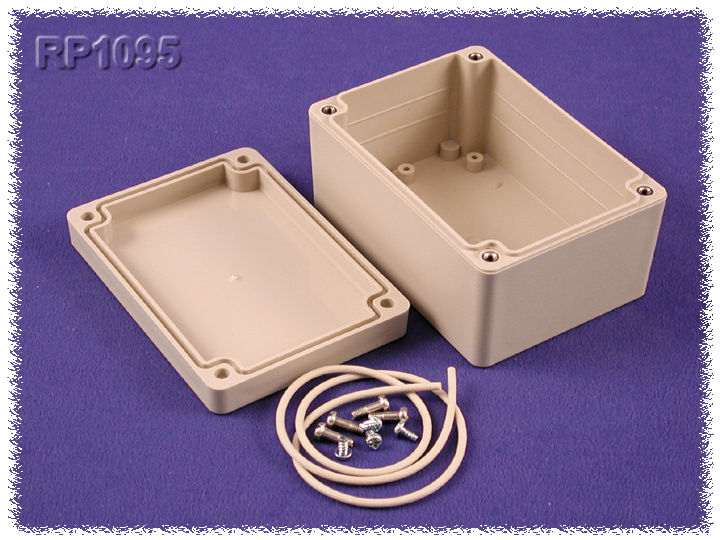

nHardware includes lid screws, PC board screws, and gasket

nFeatures corrosion resistant inserts for lid assembly

nInternal mounting points for PC boards or panels

nInternal DIN rail mounting point.

Technical

Dimensions 105 × 75 × 55 mm
Width

75

Length

105

IP Rating

IP65

Manufacturer

Hammond

Material

ABS

Flammability

UL94-HB

Shape

Rectangular/Square

Mounting

DIN Rail, Free Standing

Feature

N/A

Series

RP

Downloads

RP1095

494.09 KB
