RP1130

125 × 85 × 55 mm

Material: Polycarbonate

Category: All Products, General Purpose Plastic

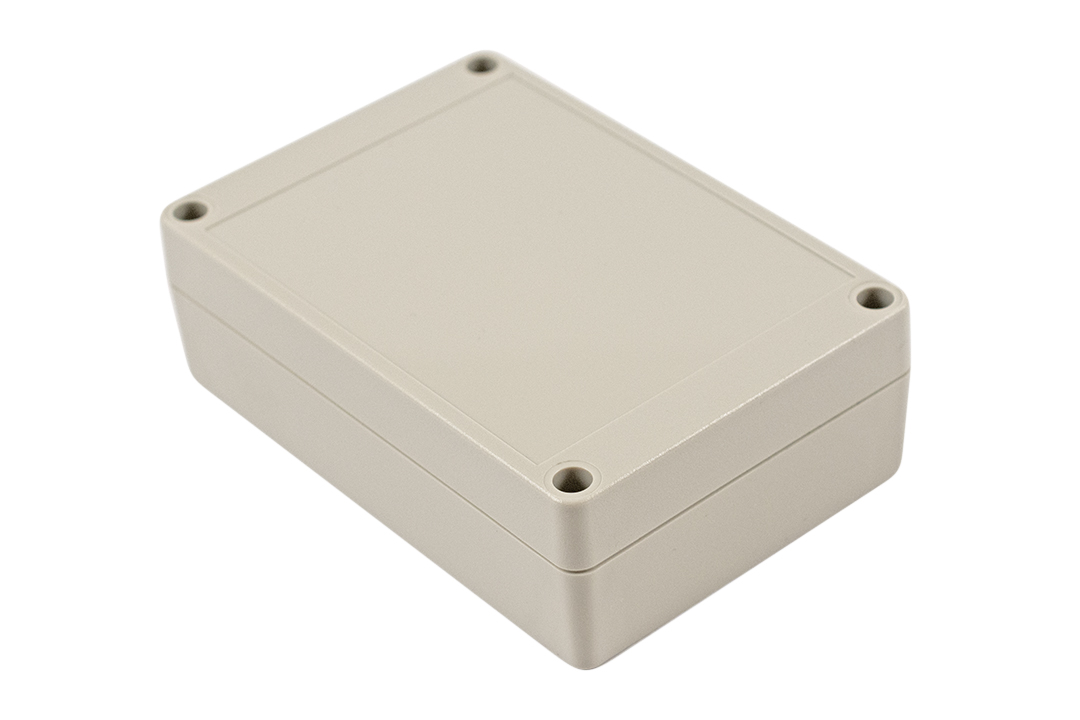

Ritec RP Series Polycarbonate Project Enclosure
£9.12

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

Key Features

  • Ideally suited for mounting printed circuit boards or components.
  • Choice of two Materials:
    • General purpose ABS with a flame rating of UL94-HB
    • Polycarbonate with a flame rating of UL94-V2
  • Gasketed lid with two piece “tongue & groove” construction provides protection against access of oil, dust, and water.
  • Rubber gasket is included and must be field installed.
  • Lid includes smooth recessed area for membrane, label or silkscreen.
  • Designed to meet IP 65.
  • Lid is secured with self captivating M3.5 stainless steel machine screws (included), threaded into corrosion resistant bushings (for repetitive assembly & disassembly).
  • Lid screws are self captivating (lid holes are threaded with the first installation of lid screws).
  • Internal features are maximized for mounting options:
    • Internal DIN rail mounting tabs
    • PC board mounting posts
    • Options vary with size, please refer to drawings by clicking on the part numbers below.
  • Extra self-tapping?M3.5-0.6 x 10mm lid screws:?SC619-50
  • Extra self-tapping M3 x 6mm PC Board screws: SC622-50

Opaque Lid (ABS version shown)

Clear Lid (polycarbonate version shown)

Shown with integral bottom flange.

Some models supplied with deep lids.


Hardware includes lid screws, PC board screws, and gasket

Features corrosion resistant inserts for lid assembly

Internal mounting points for PC boards or panels

Internal DIN rail mounting point.

Technical

Dimensions 125 × 85 × 55 mm
Width

85

Length

125

IP Rating

IP65

Manufacturer

Hammond

Material

Polycarbonate

Flammability

UL94-HB

Shape

Rectangular/Square

Mounting

DIN Rail, Free Standing

Feature

N/A

Series

RP

Downloads

RP1130

511.82 KB
