RP1175C
165 × 85 × 55 mm
Material: ABS, Polycarbonate
Category: All Products, General Purpose Plastic

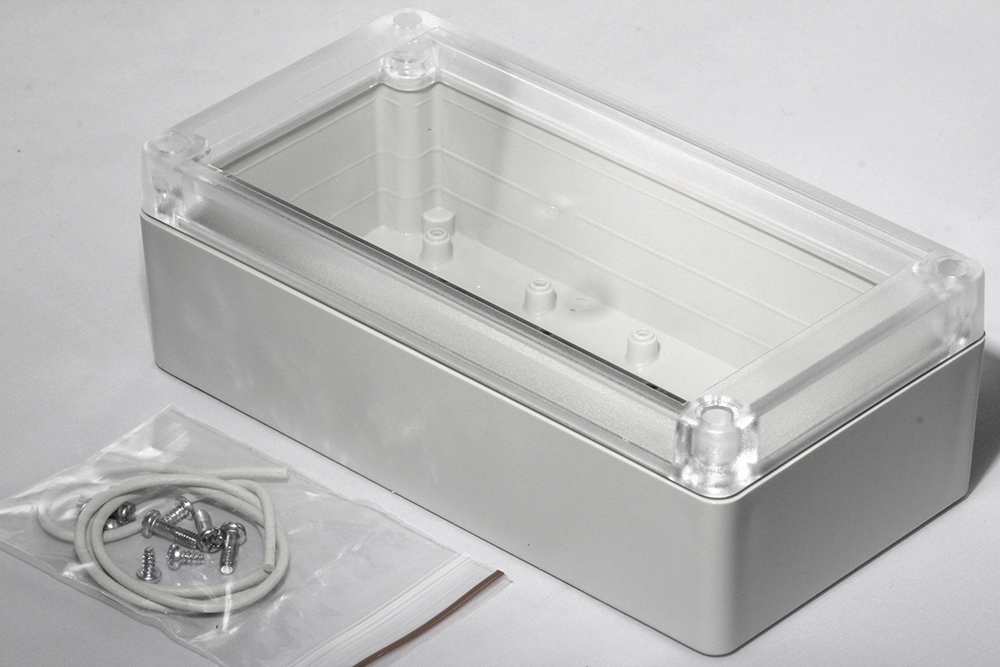

Ritec RP Series ABS Project Enclosure - Clear Lid
£7.68
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
Key Features
- Ideally suited for mounting printed circuit boards or components.
- Choice of two Materials:
- General purpose ABS with a flame rating of UL94-HB
- Polycarbonate with a flame rating of UL94-V2
- Gasketed lid with two piece “tongue & groove” construction provides protection against access of oil, dust, and water.
- Rubber gasket is included and must be field installed.
- Lid includes smooth recessed area for membrane, label or silkscreen.
- Designed to meet IP 65.
- Lid is secured with self captivating M3.5 stainless steel machine screws (included), threaded into corrosion resistant bushings (for repetitive assembly & disassembly).
- Lid screws are self captivating (lid holes are threaded with the first installation of lid screws).
- Internal features are maximized for mounting options:
- Internal DIN rail mounting tabs
- PC board mounting posts
- Options vary with size, please refer to drawings by clicking on the part numbers below.
- Extra self-tapping?M3.5-0.6 x 10mm lid screws:?SC619-50
- Extra self-tapping M3 x 6mm PC Board screws: SC622-50
Technical
| Dimensions | 165 × 85 × 55 mm |
|---|---|
| Colour | Clear, Grey |
| Height | 55 |
| Width | 85 |
| Length | 165 |
| IP Rating | IP65 |
| Manufacturer | Hammond |
| Material | ABS, Polycarbonate |
| Flammability | UL94-HB |
| Shape | Rectangular/Square |
| Mounting | Free Standing |
| Series | RS |
