RP1215
464.52 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
RP1215
145 × 105 × 60 mm
Material: ABS
Category: All Products, General Purpose Plastic
Ritec RP Series ABS Project Enclosure
£8.47
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
Key Features
- Ideally suited for mounting printed circuit boards or components.
- Choice of two Materials:
- General purpose ABS with a flame rating of UL94-HB
- Polycarbonate with a flame rating of UL94-V2
- Gasketed lid with two piece “tongue & groove” construction provides protection against access of oil, dust, and water.
- Rubber gasket is included and must be field installed.
- Lid includes smooth recessed area for membrane, label or silkscreen.
- Designed to meet IP 65.
- Lid is secured with self captivating M3.5 stainless steel machine screws (included), threaded into corrosion resistant bushings (for repetitive assembly & disassembly).
- Lid screws are self captivating (lid holes are threaded with the first installation of lid screws).
- Internal features are maximized for mounting options:
- Internal DIN rail mounting tabs
- PC board mounting posts
- Options vary with size, please refer to drawings by clicking on the part numbers below.
- Extra self-tapping?M3.5-0.6 x 10mm lid screws:?SC619-50
- Extra self-tapping M3 x 6mm PC Board screws: SC622-50

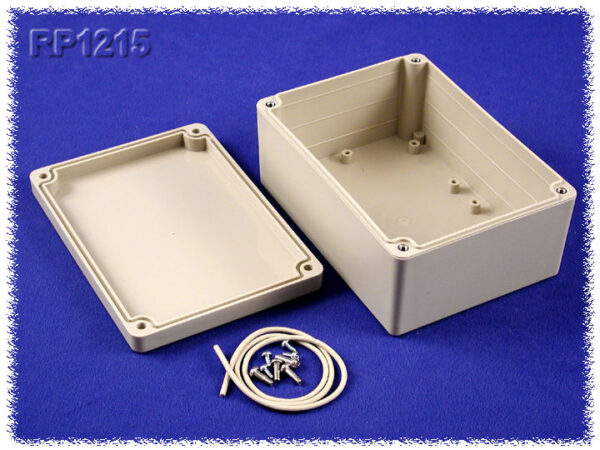

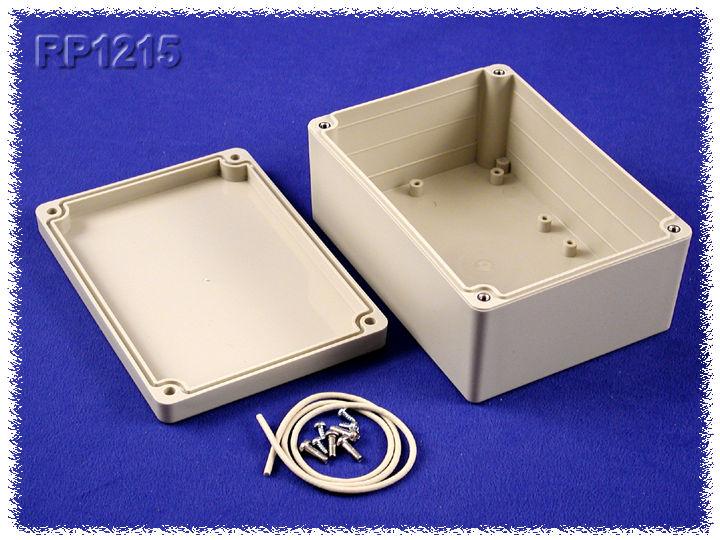

Opaque Lid (ABS version shown)
Clear Lid (polycarbonate version shown)
Shown with integral bottom flange.
Some models supplied with deep lids.
Technical
| Dimensions | 145 × 105 × 60 mm |
|---|---|
| Width | 105 |
| Length | 145 |
| IP Rating | IP65 |
| Manufacturer | Hammond |
| Material | ABS |
| Flammability | UL94-HB |
| Shape | Rectangular/Square |
| Mounting | DIN Rail, Free Standing |
| Feature | N/A |
| Series | RP |
