SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
RTM5006/16-RED
192 × 112 × 61 mm
Material: Aluminium
Category: All Products, Desktop & Instrument
Purpose Diecast Enclosure
£16.53
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

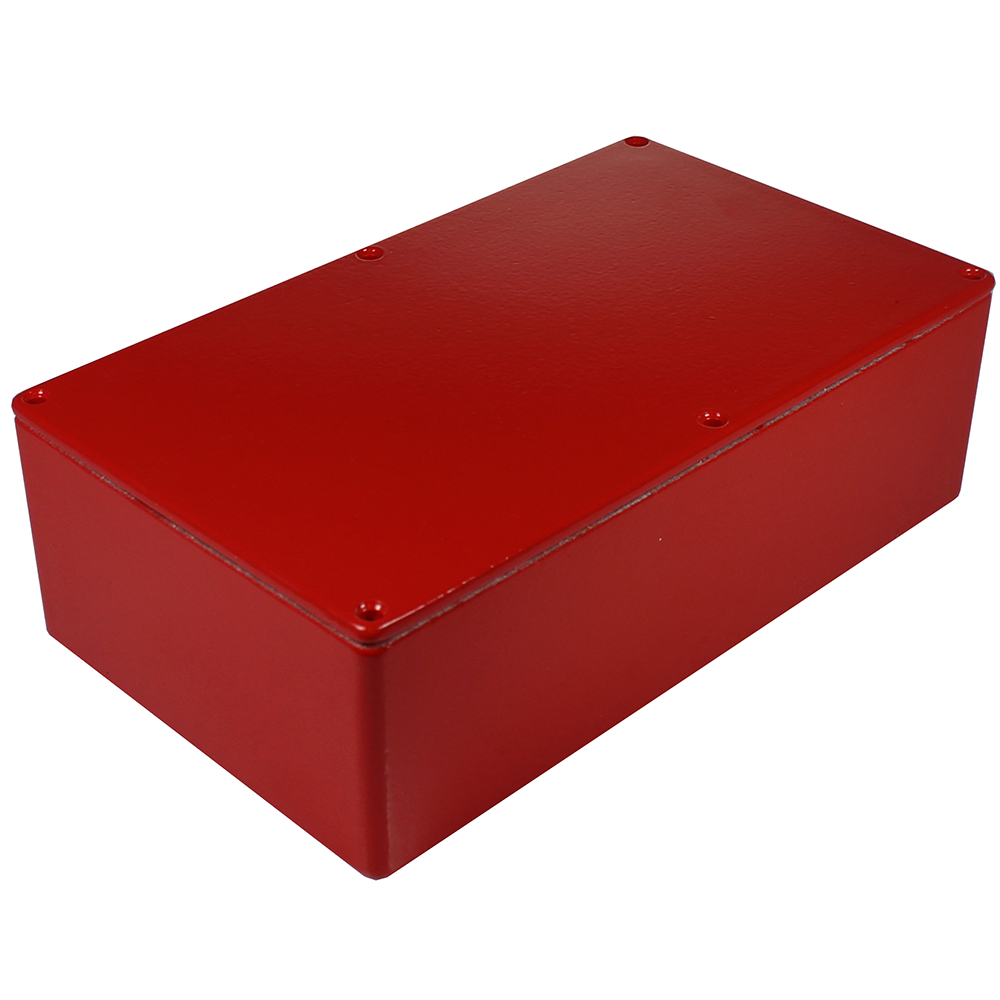

RTM5006/16-RED – 5000 Series Multi-Purpose Diecast Enclosure
5000 Series diecast enclosure, 192x112x61mm, red. This durable aluminium enclosure is ideal for use as an industrial stomp box or to protect your electronics
Highly durable robust aluminium diecast boxes with RFI shielding properties.
Diecast aluminium
Lid mounted by four M3 machine screws
Temperature resistant up to 260 degrees C (without gasket)
Highly Durable and shock resistant
Vertical guides for PCB fixing
5000 series has been designed to meet the requirements of IP54
Or additionally, IP65 with the gasket accessory
Technical
| Dimensions | 192 × 112 × 61 mm |
|---|---|
| Colour | Red |
| Height | 61 |
| Width | 112 |
| Length | 192 |
| IP Rating | IP65 |
| Manufacturer | CamdenBoss |
| Material | Aluminium |
| Flammability | N/A |
| Shape | Rectangular/Square |
| Mounting | Free Standing, Wall Mount |
| Feature | RF Shielded |
| Series | 5000 |
Downloads
RTM5006_16-RED
169.38 KB
